Description
SHR40P – PVC-u Handrail
Overview
Pedestrian guidance, support, and durable wall protection
In interior circulation areas, handrails play a critical role in safety, accessibility, and wayfinding. Poorly specified systems can compromise user support, visual contrast, and long-term durability—particularly in healthcare, education, commercial, retail and transport environments.

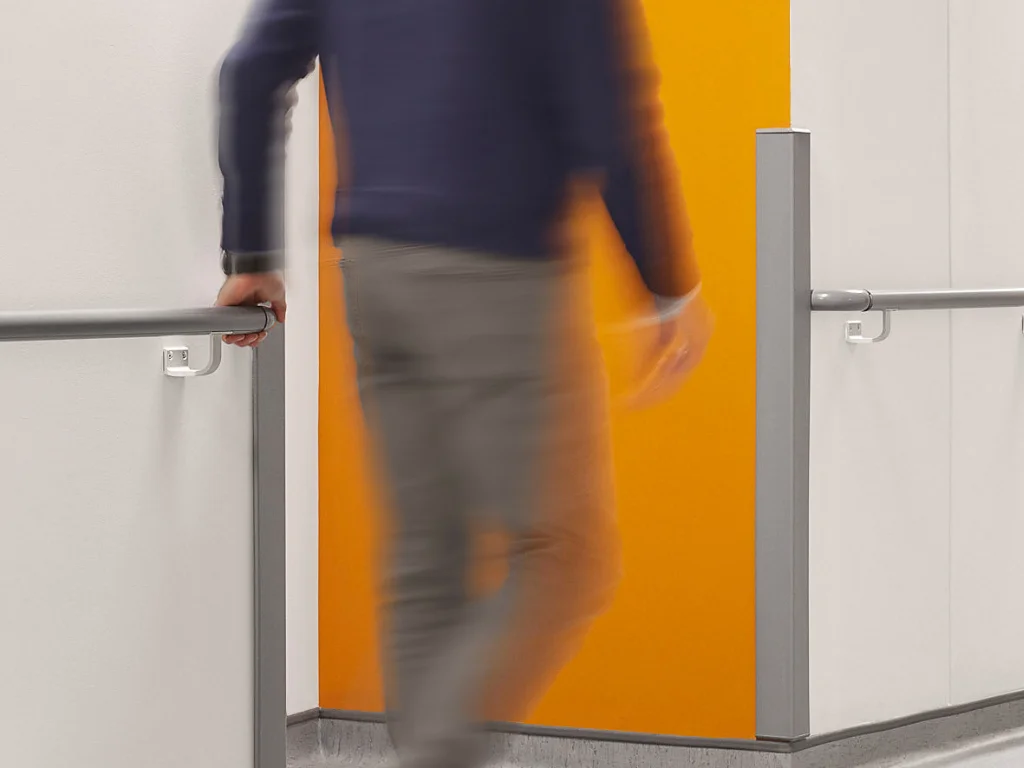

Gradus SHR40P Handrails provide reliable pedestrian guidance and support, combined with a practical level of wall surface protection. Designed around recognised guidance for grip diameter, wall clearance, and accessibility, the SHR40P range delivers consistent performance across demanding interior environments.
Handrail size
- Diameter: 40mm
Lengths
- Supplied in 4.0m lengths
PVC-u accessories are supplied with black reveals manufactured from a naturally bactericidal polymer, providing neat, smooth joints and supporting hygiene control.
PVC-u covers and accessories are through-coloured to help conceal the effects of impact and abrasion.
Available in 32 colour options, with Light Reflectance Values (LRVs) provided to support accessible colour contrast specification.
The SHR40P variant comprises:
- Aluminium retainer
- PVC-u cover

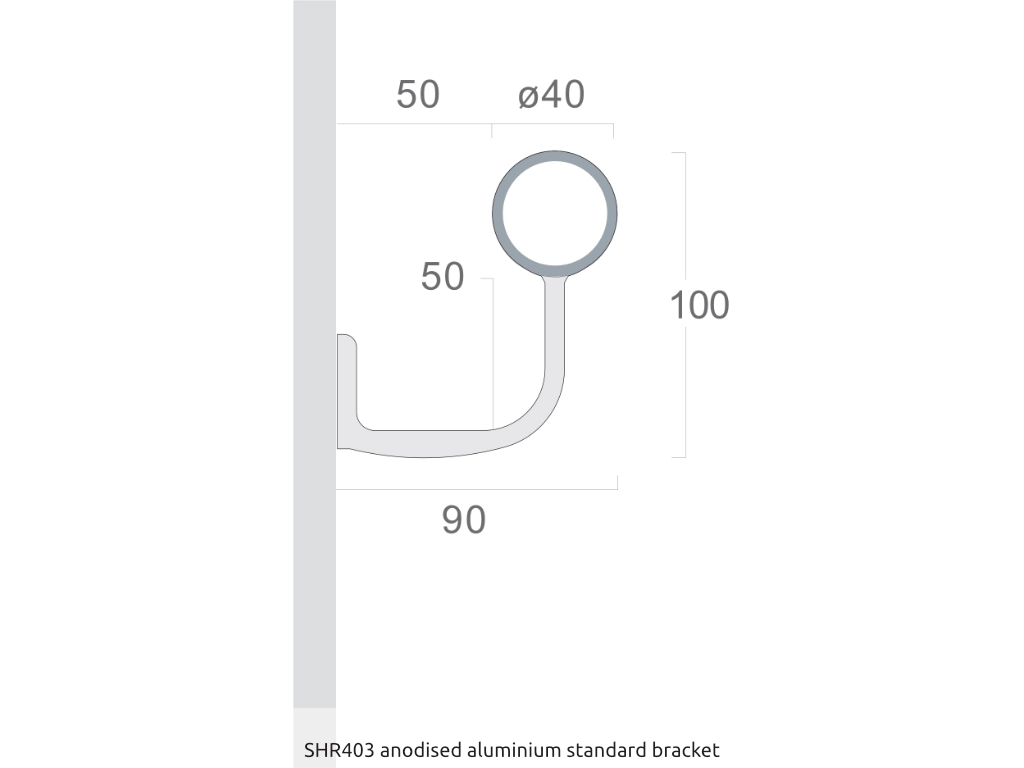

- Anodised aluminium brackets

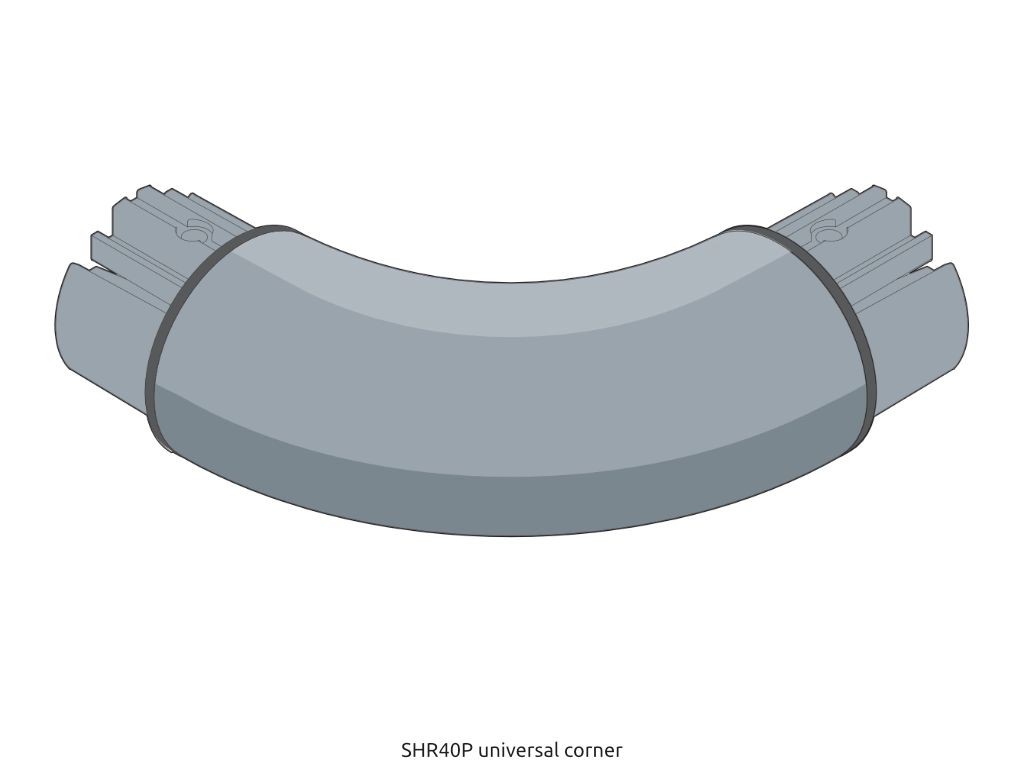

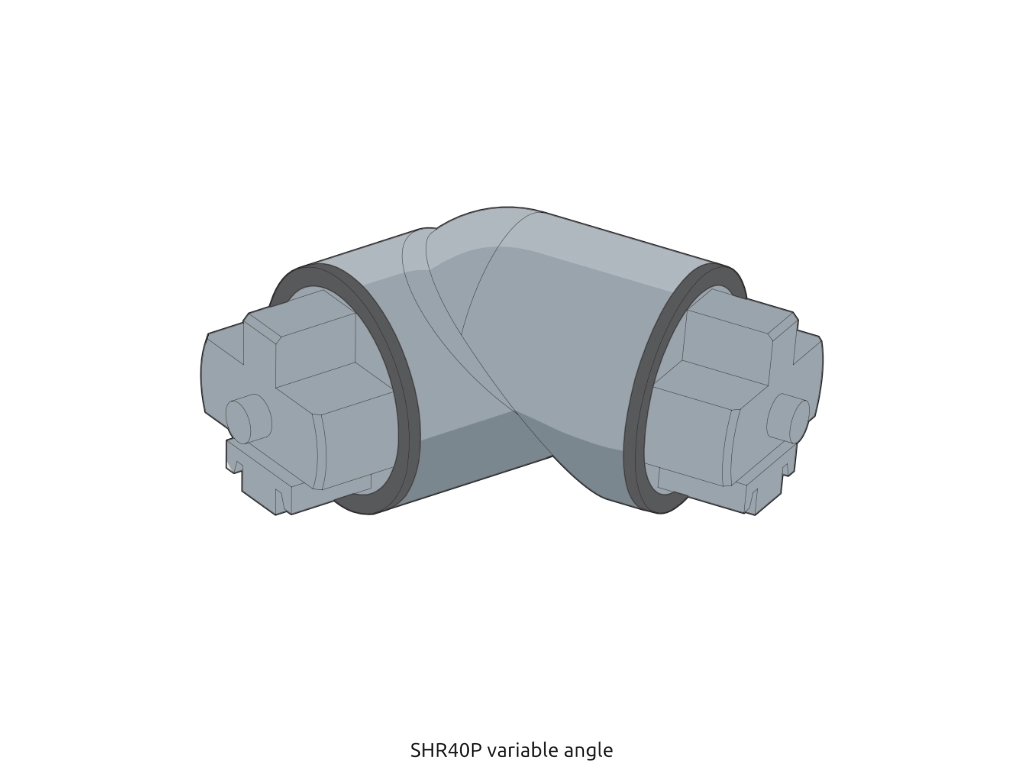

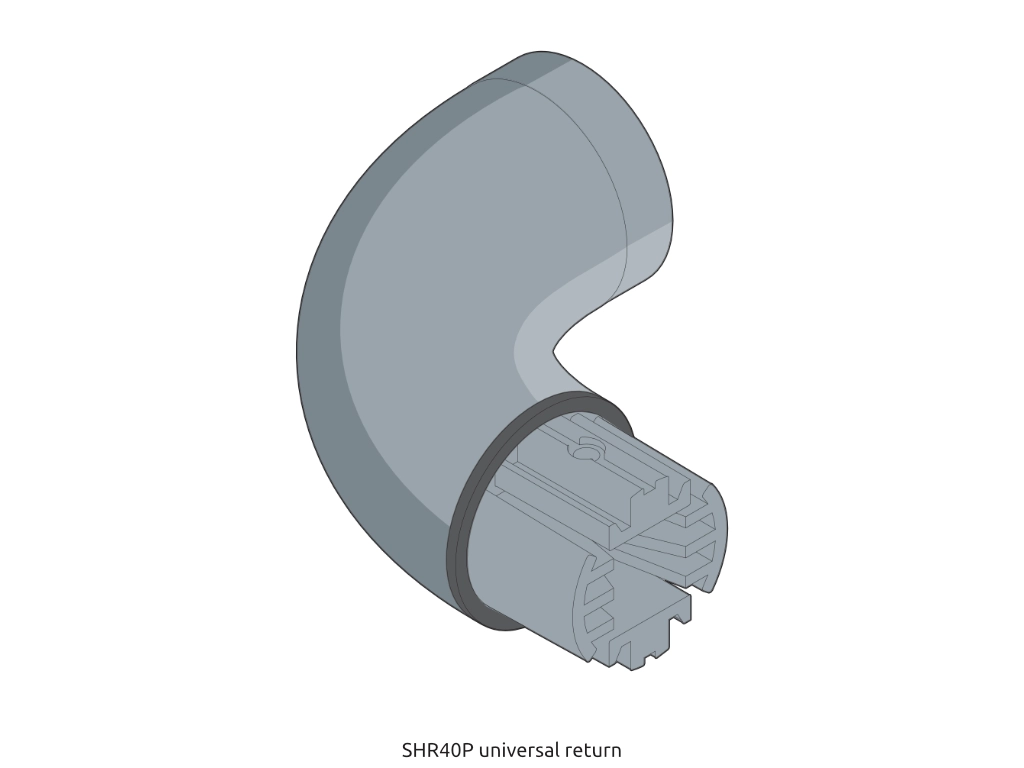

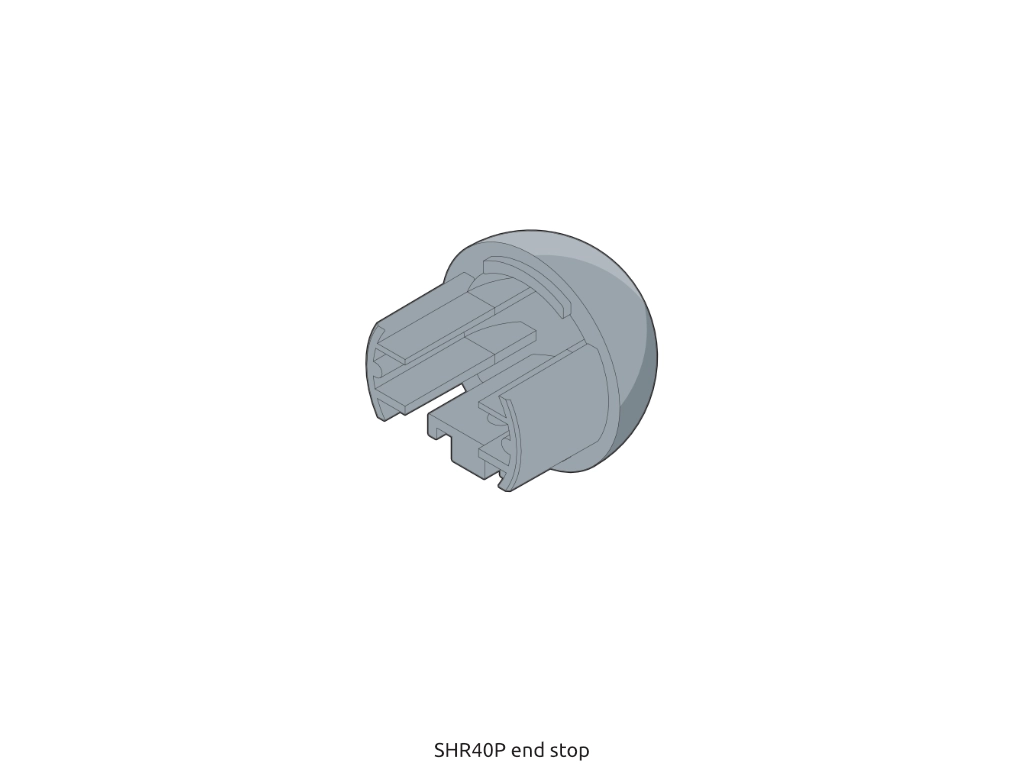

- PVC-u accessories including returns, inside and outside corners, variable angle components, and end stops
Benefits
- Provides reliable pedestrian support and guidance
- Improves safety and accessibility in circulation areas
- Offers a level of wall surface protection
- Designed to meet recognised accessibility and building guidance
- Durable construction supports long-term performance
- Variant options allow flexibility in appearance without changing system performance
A practical, compliant solution for high-use interior spaces.
Features
- 40mm diameter handrail for a smooth, comfortable grip
- Designed to meet guidance for grip diameter and wall clearance
- Aluminium retainer system with surface-mounted brackets
- Compatible with a full range of accessories
- Smooth, easy-to-clean surfaces
- Designed for durability in high-use interiors
- Replacement components available
BoQ Specification
SHR40P – PVC-u Handrail
Supply and install Gradus SHR40P Handrail comprising an aluminium retainer, PVC-u cover, anodized aluminium brackets and PVC-u accessories including returns, inside and outside corners, variable angle and end stops, with PVC-u accessories supplied with black reveals in an anti-bacterial finish to provide neat, smooth joints, featuring a 40mm diameter handrail and offering a smooth, comfortable grip, PVC-u covers and accessories are available in 32 colour options and are through-coloured to conceal the effects of impact and abrasion, supplied in 4.00m lengths. Joining of PVC, length of walls, and contours and deviations of walls must be considered when calculating the brackets needed, available from Polysales +27 11 609 3500.
Code: SHR40P
Comprehensive Specification
SHR40P – PVC-u Handrail
Supply and install Gradus SHR40P Handrail comprising an aluminium retainer, PVC-u cover, anodized aluminium brackets and PVC-u accessories including returns, inside and outside corners, variable angle and end stops, with PVC-u accessories supplied with black reveals in an antibacterial finish to provide neat, smooth joints, featuring a 40mm diameter handrail and offering a smooth, comfortable grip, PVC-u covers and accessories are available in 32 colour options and are through-coloured to conceal the effects of impact and abrasion, supplied in 4.00m lengths. Joining of PVC, length of walls, and contours and deviations of walls must be considered when calculating the brackets needed
Code: SHR40P
Downloads
Components
SHR40P
FAQs
Q: What are SHR40P handrails used for?
A: They provide pedestrian guidance and support in interior circulation areas, while also offering a practical level of wall surface protection in high-use environments.
Q: Are SHR40P handrails suitable for healthcare environments?
A: Yes. SHR40P handrails are commonly specified in healthcare and clinical settings due to their durability, hygiene performance, and compliance with recognised guidance.
Q: What grip size does the SHR40P handrail provide?
A: The handrail has a 40mm diameter, offering a smooth, comfortable grip aligned with accessibility guidance.
Q: Do SHR40P handrails support accessibility requirements?
A: Yes. They are designed to meet recognised accessibility and building guidance.
Q: Are SHR40P handrails suitable for hygienic environments?
A: Yes. The PVC-u covers and accessories are easy to clean, and the black reveals are manufactured from a naturally bactericidal polymer to support hygiene control.
Q: Can SHR40P handrails be specified for visual contrast?
A: Yes. The range is available in 32 colour options, with Light Reflectance Value (LRV) data provided to help achieve suitable visual contrast against surrounding surfaces.
Q: Can SHR40P handrails be combined with other Gradus products?
A: Yes. They can be integrated with other Gradus rails and wall protection profiles to form a complete interior protection solution.
