Description
Overview
Surface mount corner guards comprising aluminium and PVC-u cover and top/bottom caps. Replaceable, through coloured, easy-to-clean covers – textured to conceal the effects of impact and abrasion. Aluminium retainer provides additional support for weaker substrates. Supplied in package format with a pre-cut retainer, cover and 2 caps.
Can also be cut down to suit specific requirements with additional top/bottom caps available to order. Replacement components available to purchase.
- Height: 7 options: 0.8m, 1.0m, 1.22m, 2.0m, 2.44m, 2.7m and 4.0m
- Environment: Interior
Features

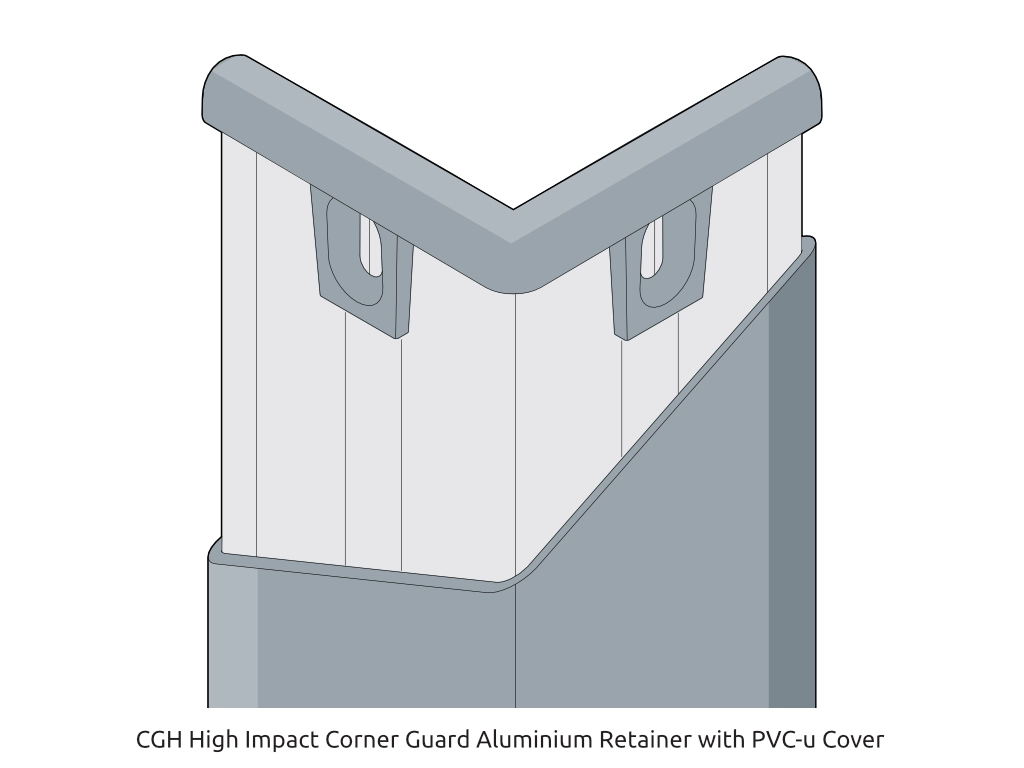

- Surface mount corner guards comprising aluminium retainer, PVC-u cover and top/bottom caps
- Replaceable, through coloured, easy-to-clean covers – textured to conceal the effects of impact and abrasion
- Aluminium retainer provides additional support for weaker substrates
- Supplied in package format with a pre-cut retainer, cover and 2 caps

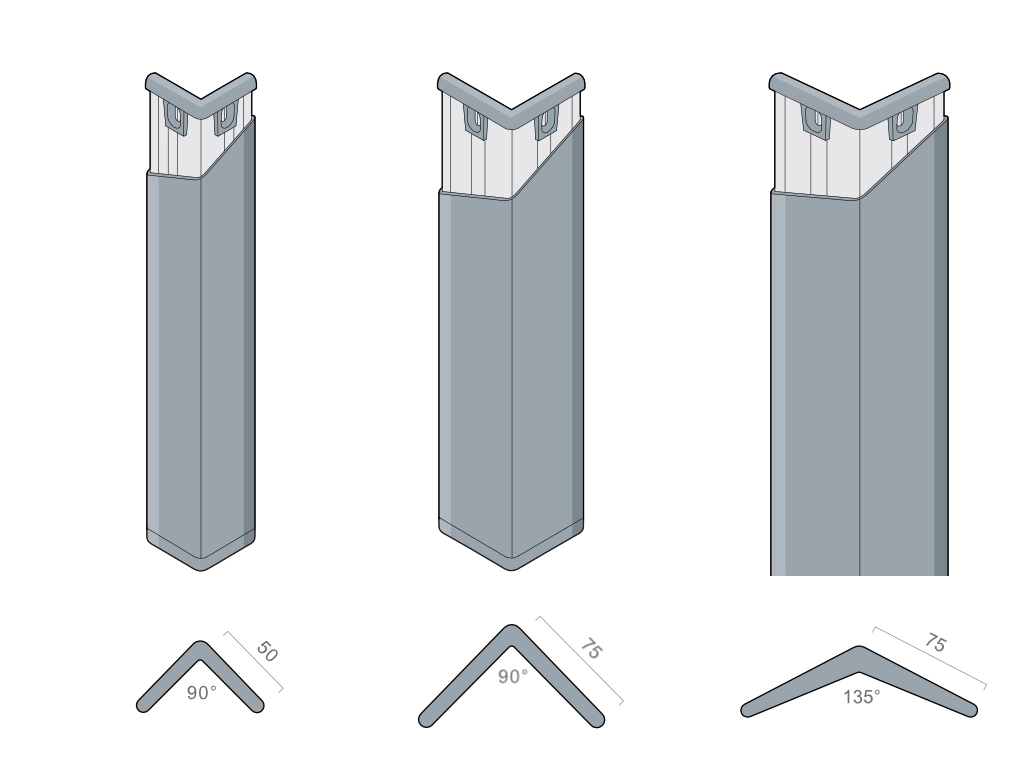

Wing Sizes

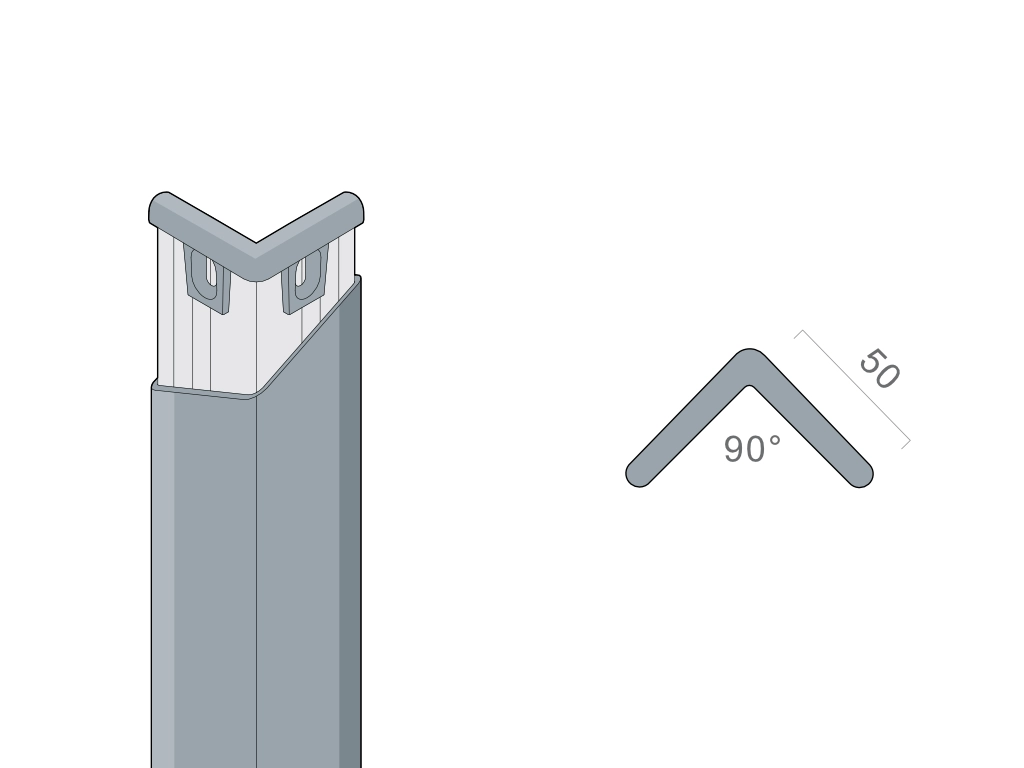

CGH5090

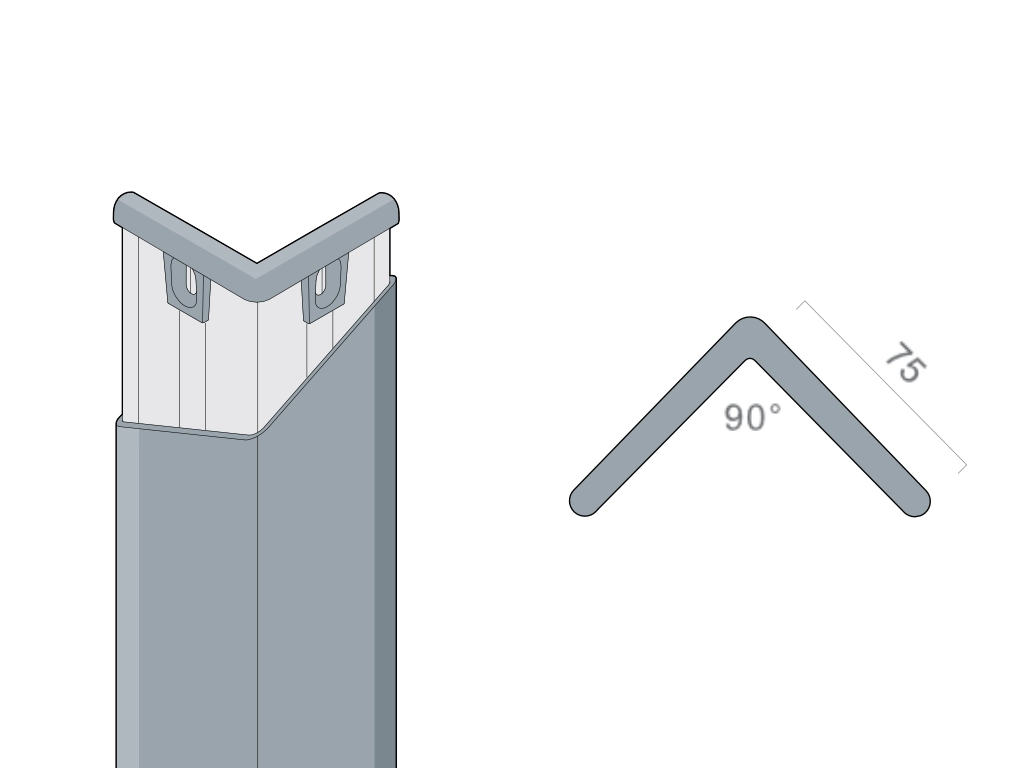

CGH7590

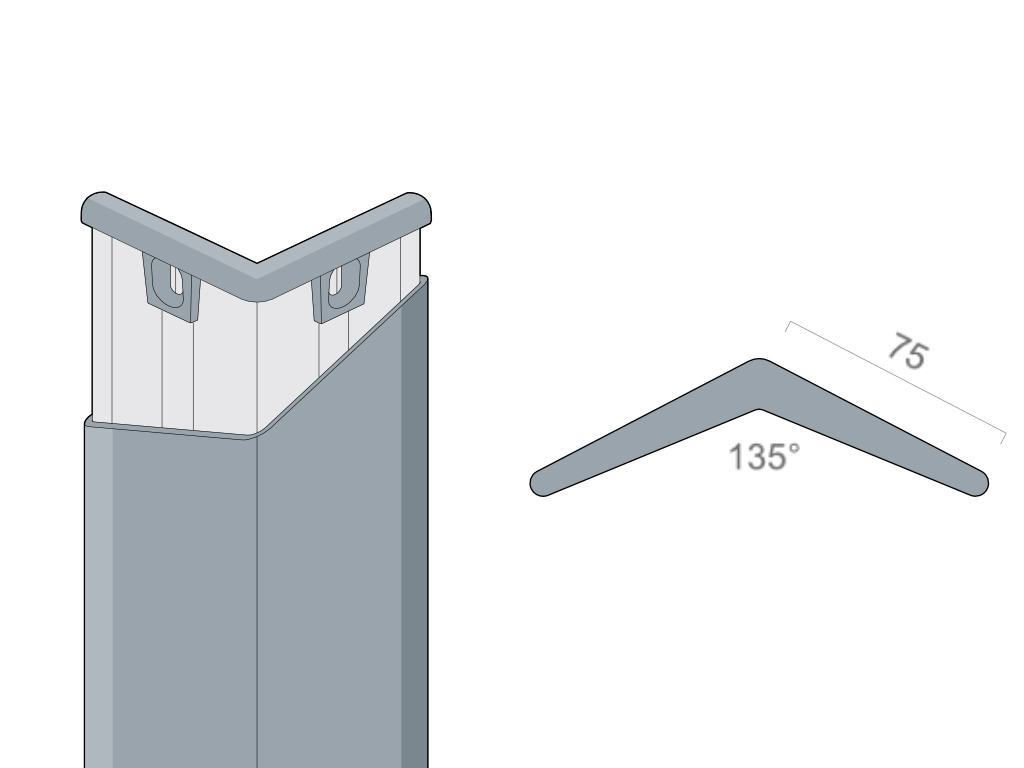

CGH75135
BoQ Specification
Supply and install Gradus CGH50 x 50/75 x 75mm x 90° or 75 x 135° High Impact one-piece surface mount Corner Guards, through-coloured, easy-to-clean PVC-u, textured to conceal the effects of impact and abrasion, affixed with screws for quick and easy installation, available in 34 colour options, supplied in 0.80m/1.00m/1.22m/2.00m/2.44m/2.70m/4.00m lengths or cut lengths, available from Polysales +27 11 609 3500.
Code: CGH5090, CGH75135, CGH7590
Comprehensive Specification
Supply and install CGH5090/7590/75135 High Impact PVC-u corner guard featuring a 50/75mm wing and a 90°/135° angle, available in 7 height options (0.80m/1.0m/1.22m/2.0m/2.44m/2.70m/4.0m) and supplied in kit form with pre-cut aluminium retainer, PVC-u cover and finishing caps, with an aluminium retainer providing reinforced defense against high impact damage caused by wheeled traffic whilst the PVC-u cover is through coloured and textured to conceal the effects of impact and abrasion and are easily replaceable in the event of damage, available in 34 colour options.
Code: CGH5090, CGH75135, CGH7590
Downloads
Components
FAQs
Q: What are Gradus High Impact PVC-u Corner Guards and what are they used for?
A: Gradus High Impact PVC-u Corner Guards protect one of the most vulnerable areas in a building — corners — from damage caused by trolleys, wheelchairs, stretchers and general pedestrian traffic. They help maintain the appearance of interior spaces and reduce ongoing maintenance costs.
Q: How are the corner guards constructed?
A: Each unit includes an aluminium retainer, a PVC-u cover and top and bottom finishing caps. The aluminium retainer offers maximum impact protection.
Q: What are the main features of Gradus High Impact PVC-u Corner Guards?
A:
- Surface-mounted design for easy installation
- Replaceable, through-coloured PVC-u covers that conceal scuffs and scratches
- Textured finish to hide wear and simplify cleaning
- Reinforced aluminium retainer for added strength on weaker substrates
- PVC-u retainer made with up to 100% recycled material for a more sustainable choice
Q: Are the covers replaceable if damaged?
A: Yes. The PVC-u covers are fully replaceable, allowing individual components to be swapped out quickly without removing the entire guard — saving time and cost during maintenance.
Q: What sizes and dimensions are available?
A: Wing sizes include 5090, 7590 and 75135, with height options of 0.8 m, 1.0 m, 1.22 m, 2.0 m, 2.44 m, 2.7 m and 4.0 m. Each unit is supplied pre-cut with a retainer, cover and two caps.
Q: Can the corner guards be customised or cut to size?
A: Yes. They can be cut down to meet specific project requirements, and additional top and bottom caps are available to order.
Q: What colour options are available?
A:The range comes in a wide palette of colours including neutral, natural and accent tones providing design flexibility for any interior.
Q: Are replacement parts available?
A: Yes. Replacement covers, retainers and caps can be purchased separately to maintain and refresh the system over time.
Q: Where can Gradus High Impact PVC-u Corner Guards be used?
A: They are suitable for interior environments such as hospitals, care facilities, schools, offices, hotels and public buildings — anywhere wall and corner protection is required to withstand frequent contact from wheeled and pedestrian traffic.
